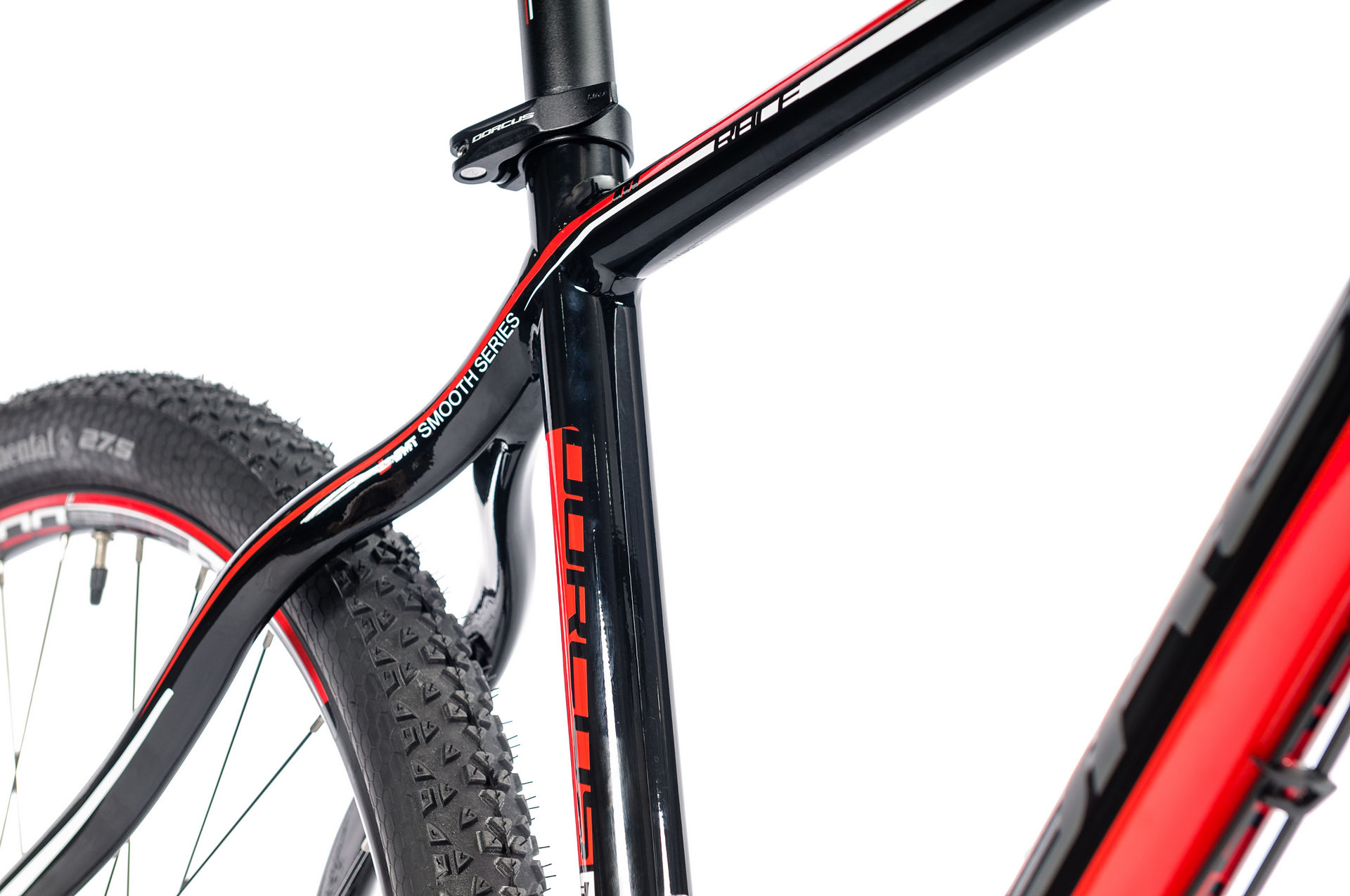

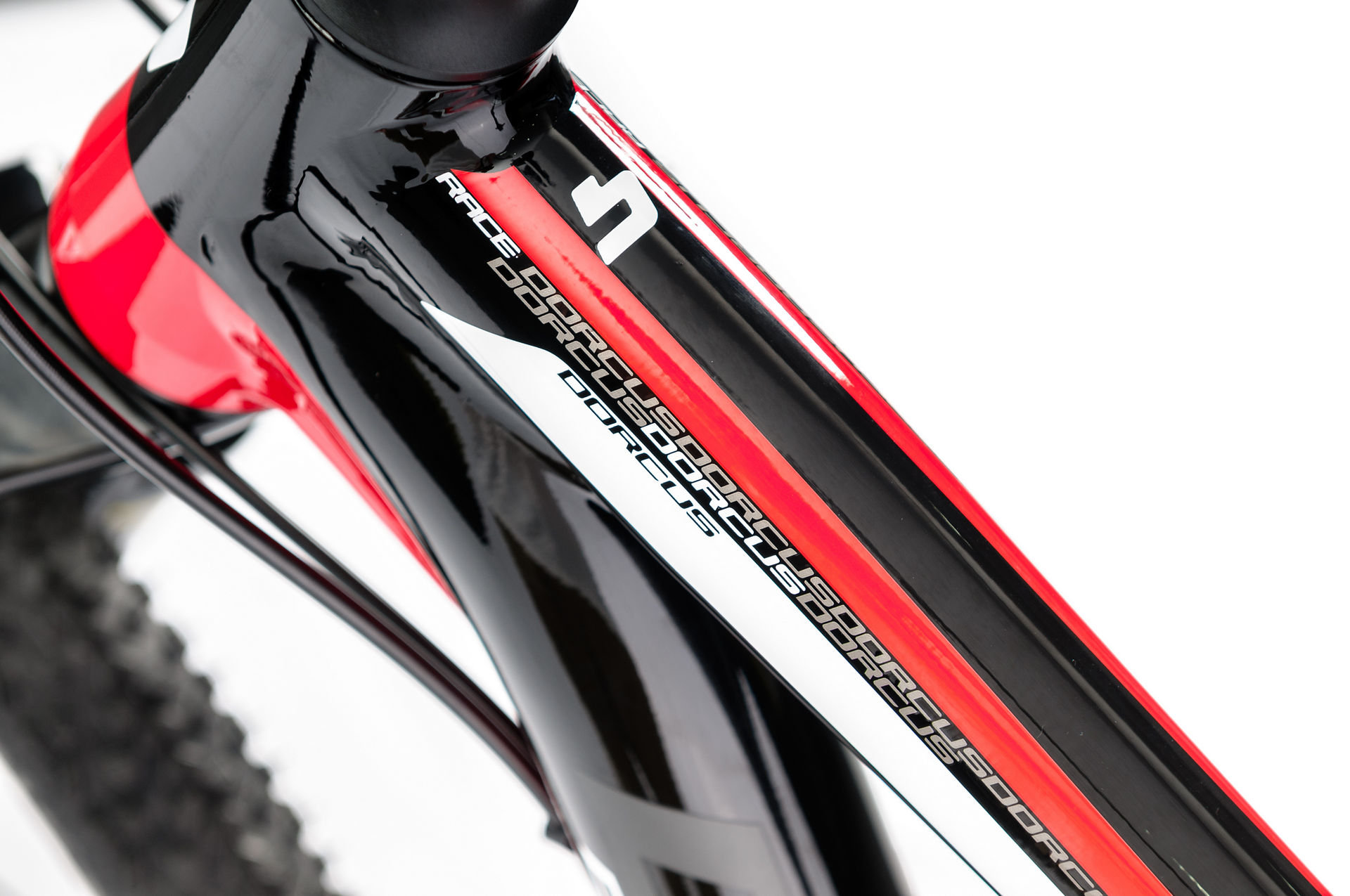

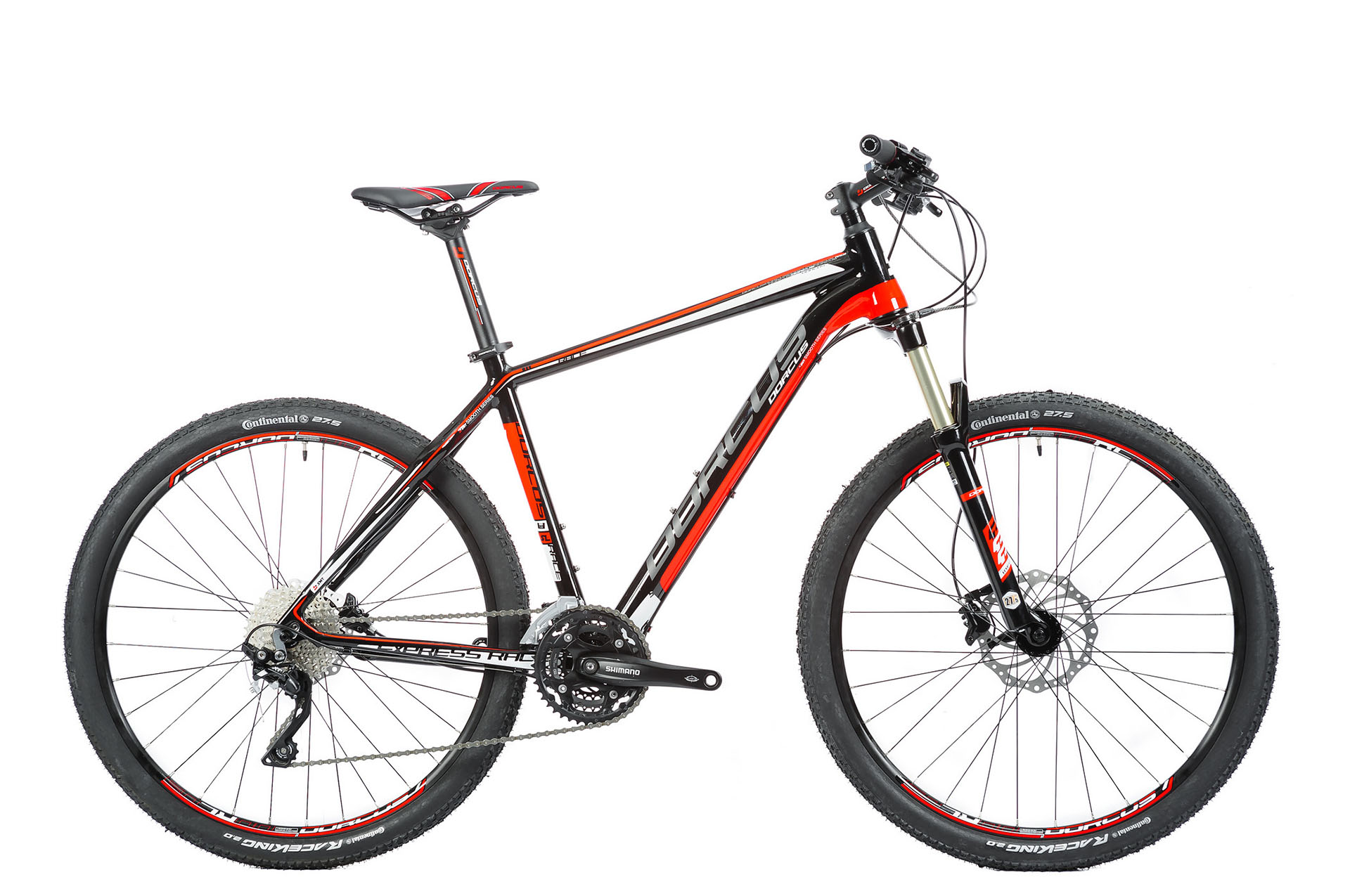

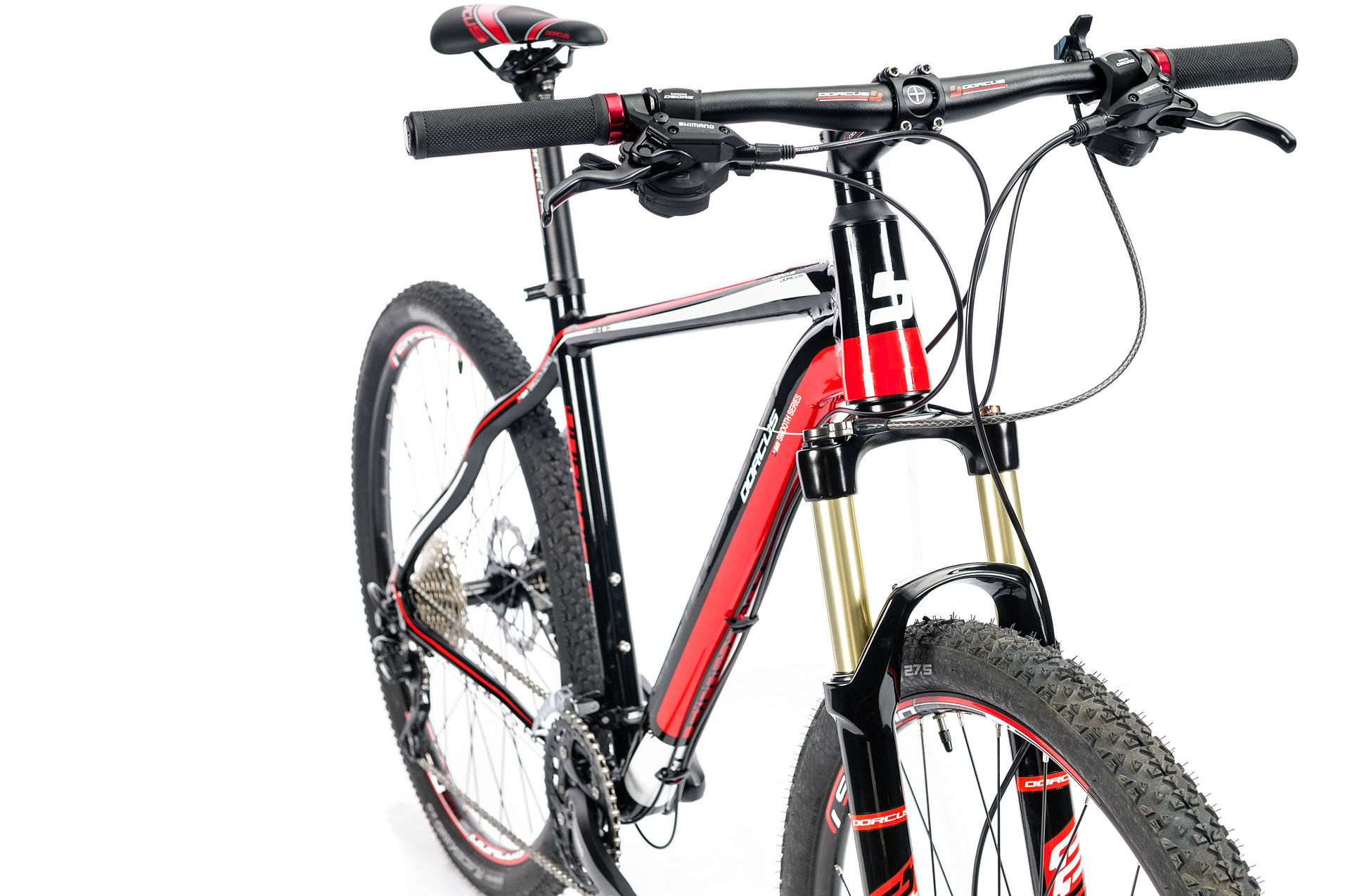

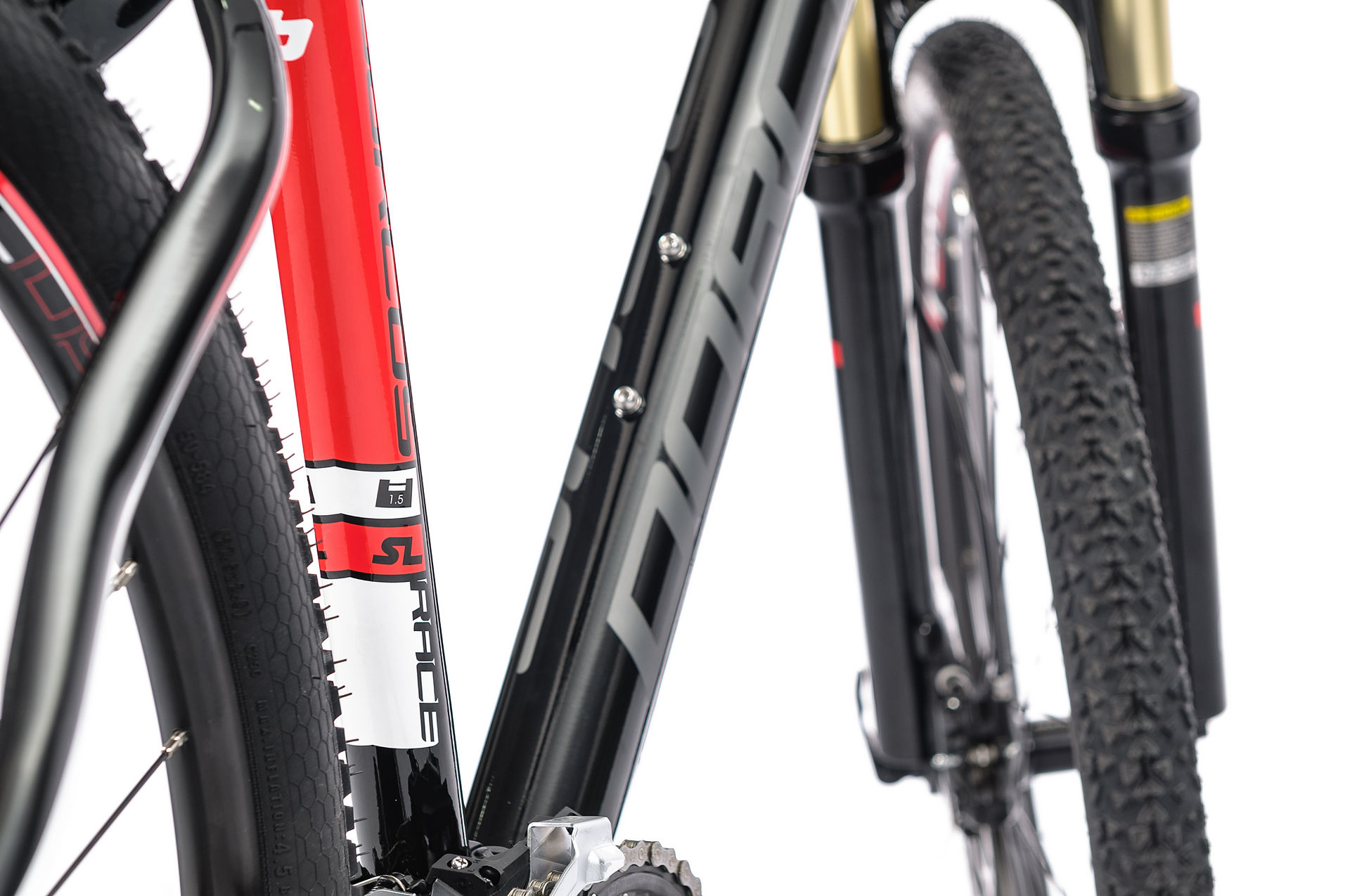

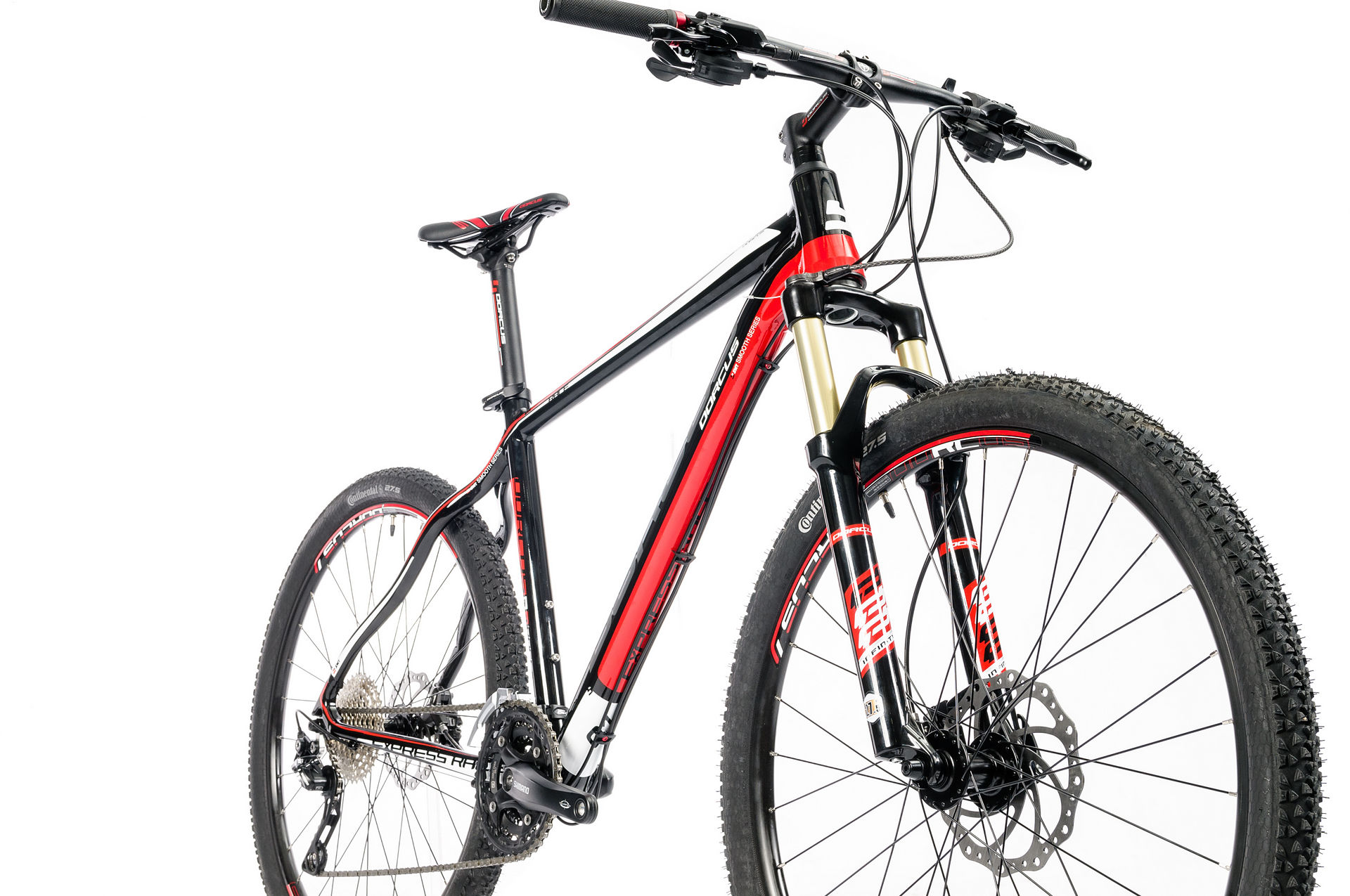

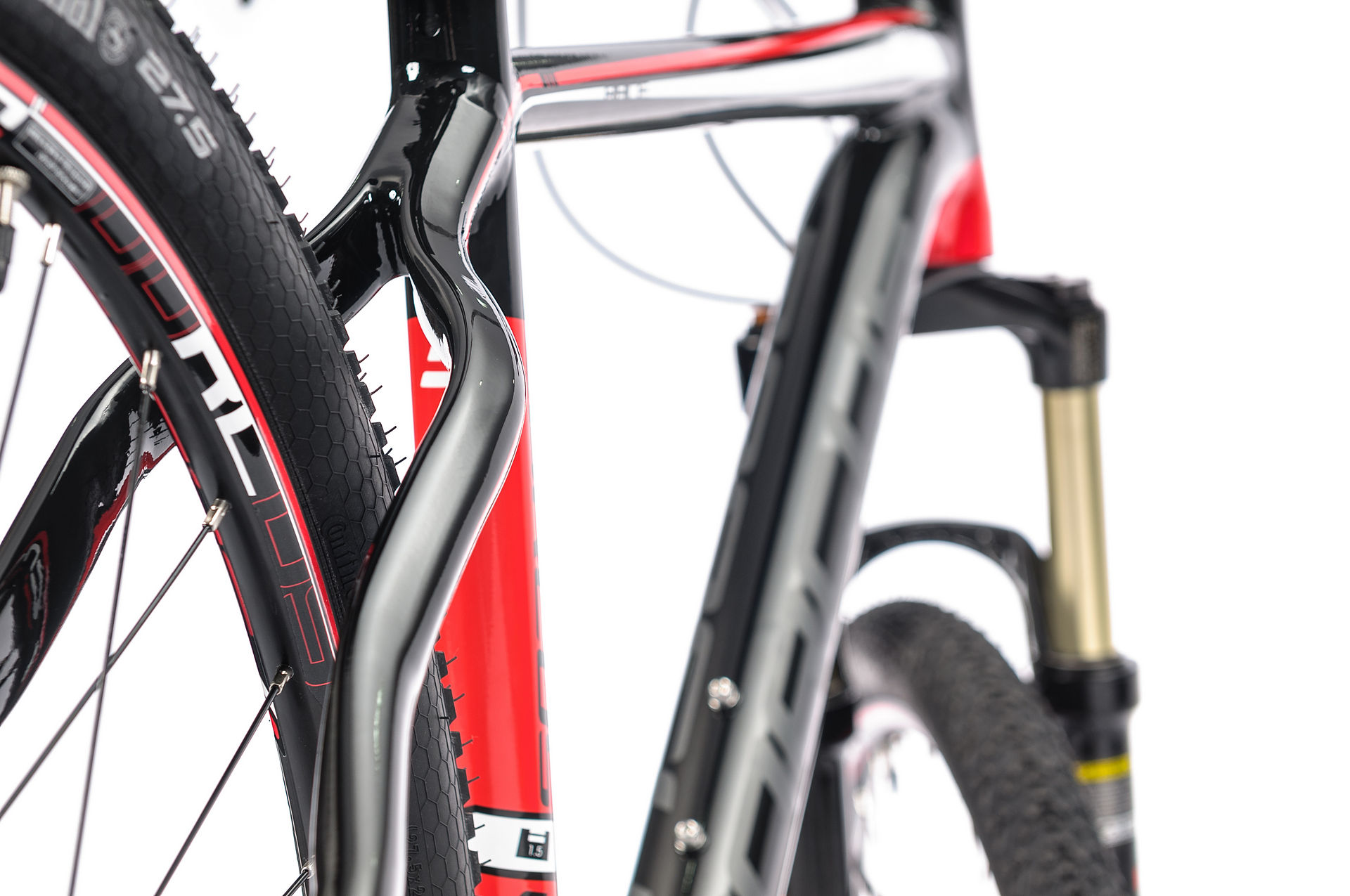

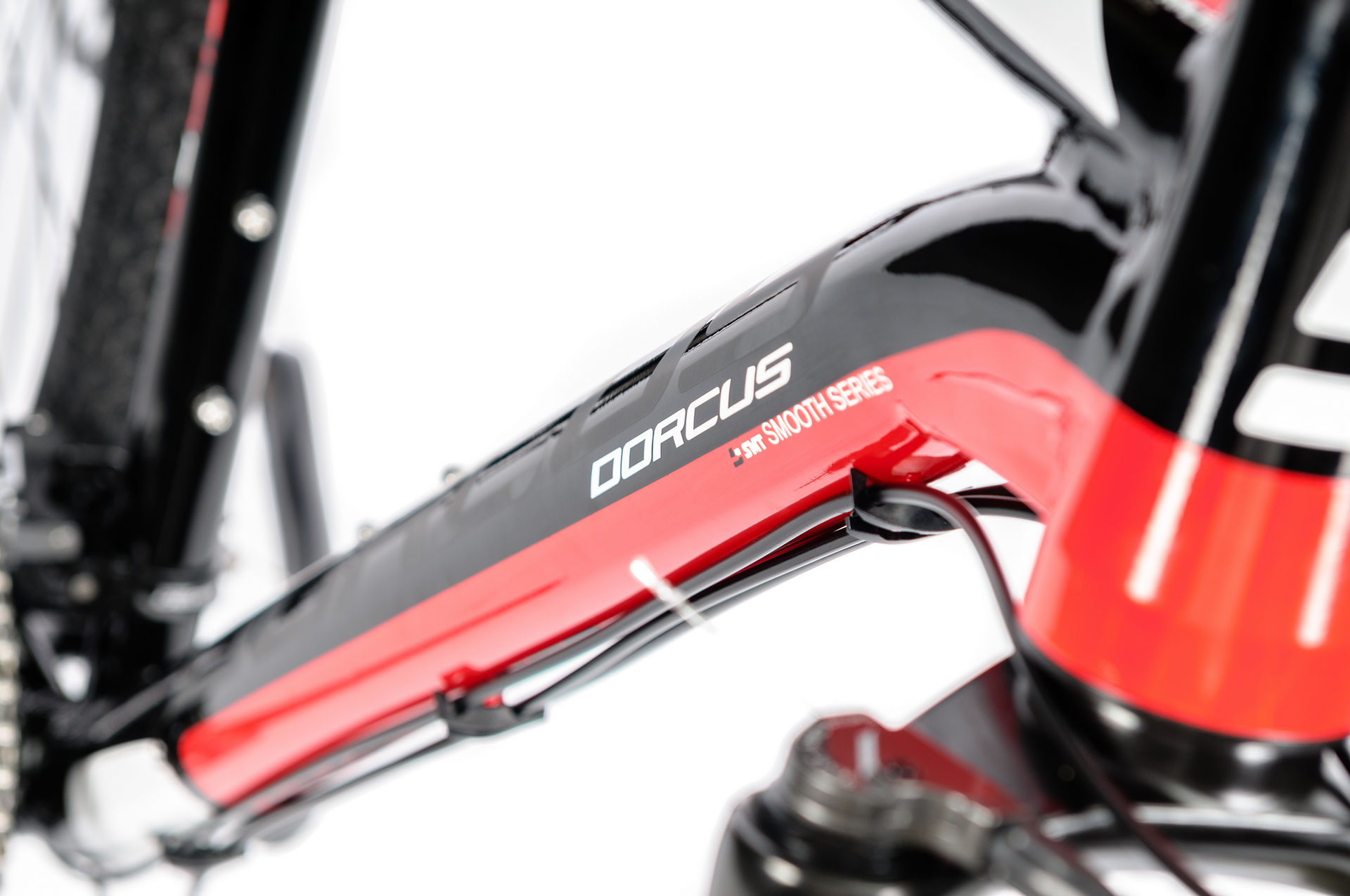

FRAME |
27.5" Alloy MTB Frame w/ Anod. Silver Hanger |
|
COLOR |
Black / Red |
|
SIZE |
39 / 42 / 46 / 48 |
|

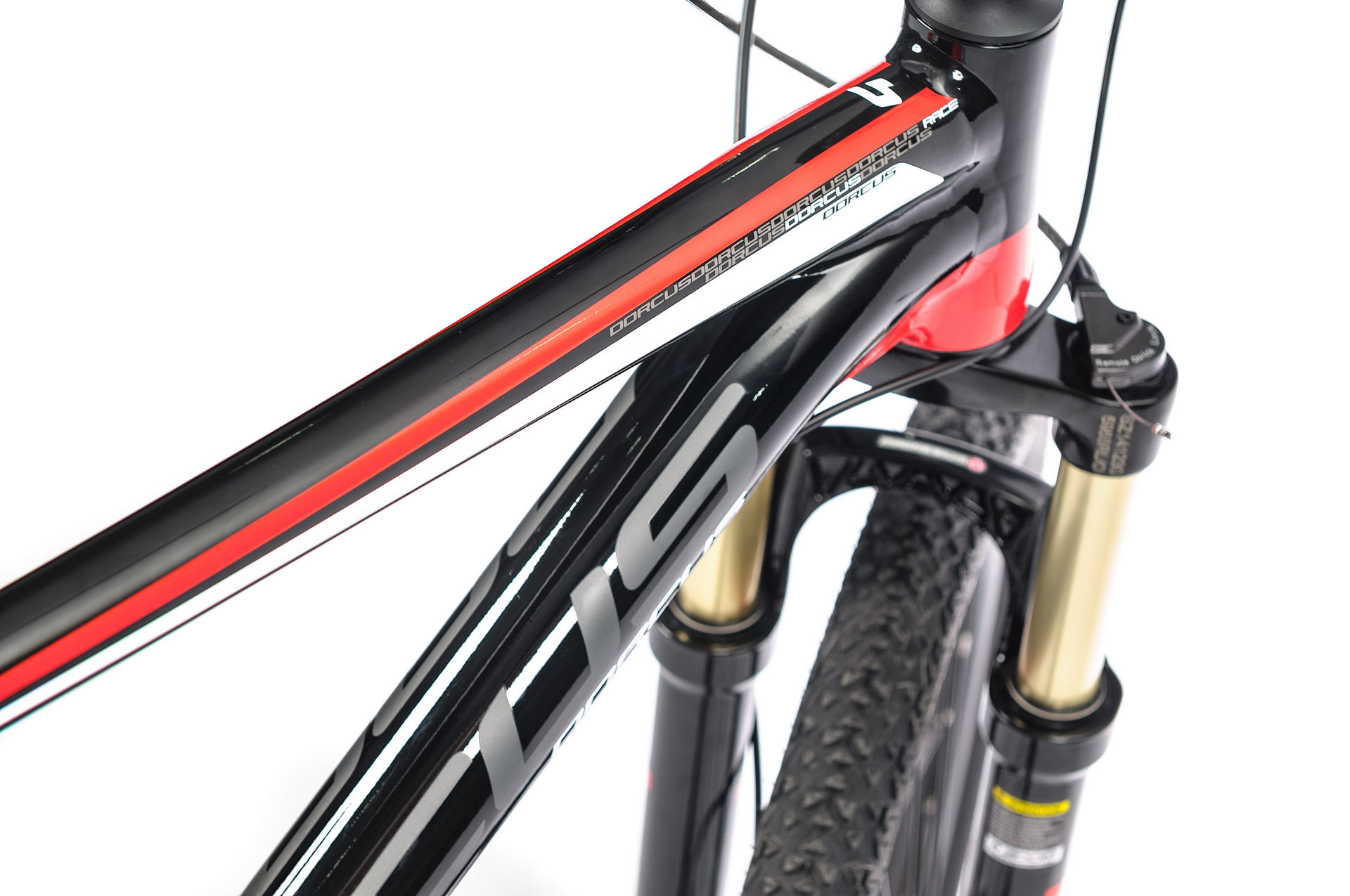

FORK |
CH-595 27.5" 1-1/8" W/Remote Lock Out |
|

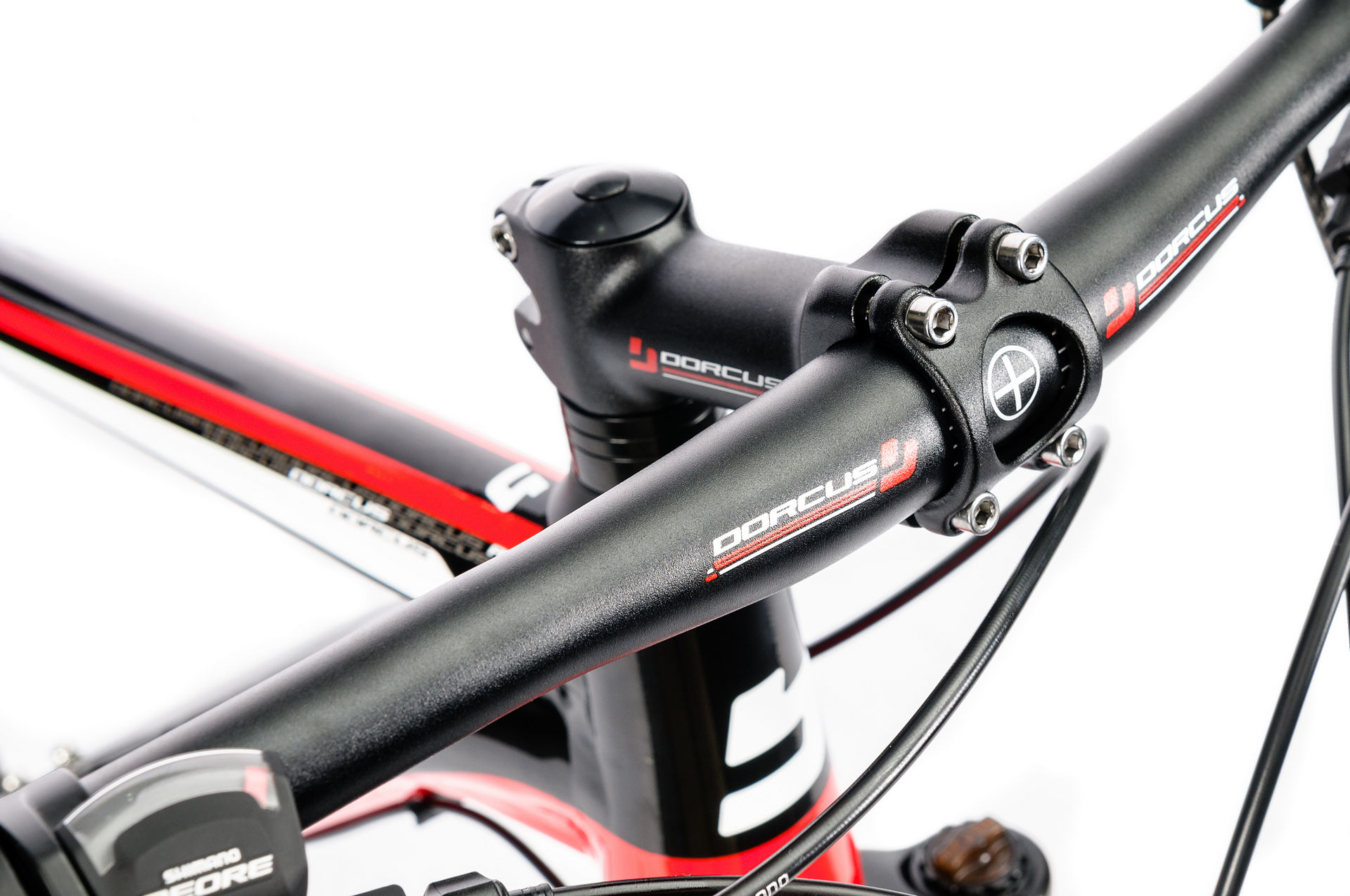

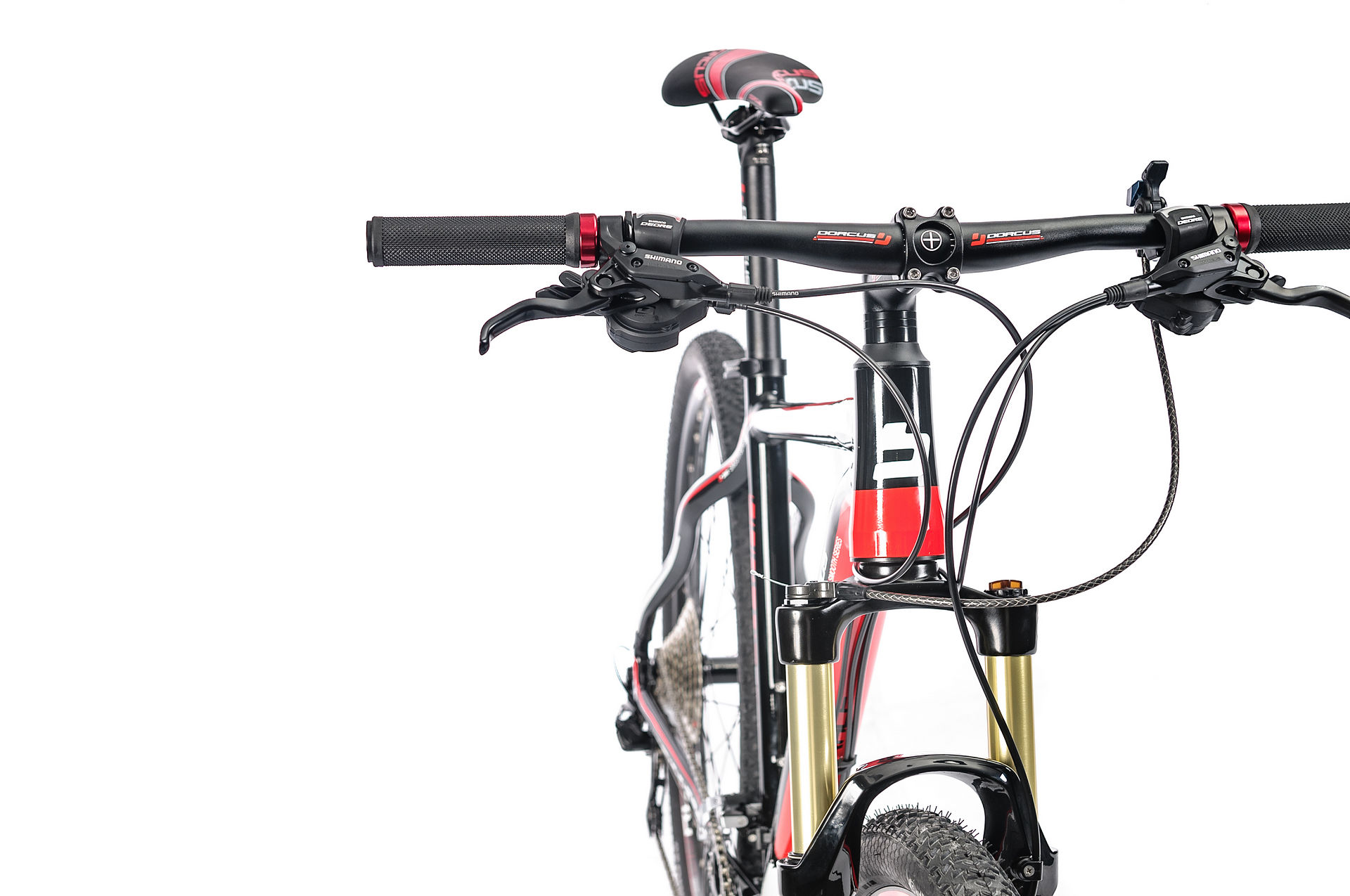

HANDLEBAR |
Dorcus 660Wx15Hx31.8mm SBBK, Dorcus Red Sticker |
|
STEM |
Dorcus 31.8x28.6x90Ex10° SBBK, Dorcus Red Sticker |
|
GRIPS |
Dorcus 135mm BLK w/ Dorcus Laser Logo |
|
HEADSET |
IKO04+I02 |
|

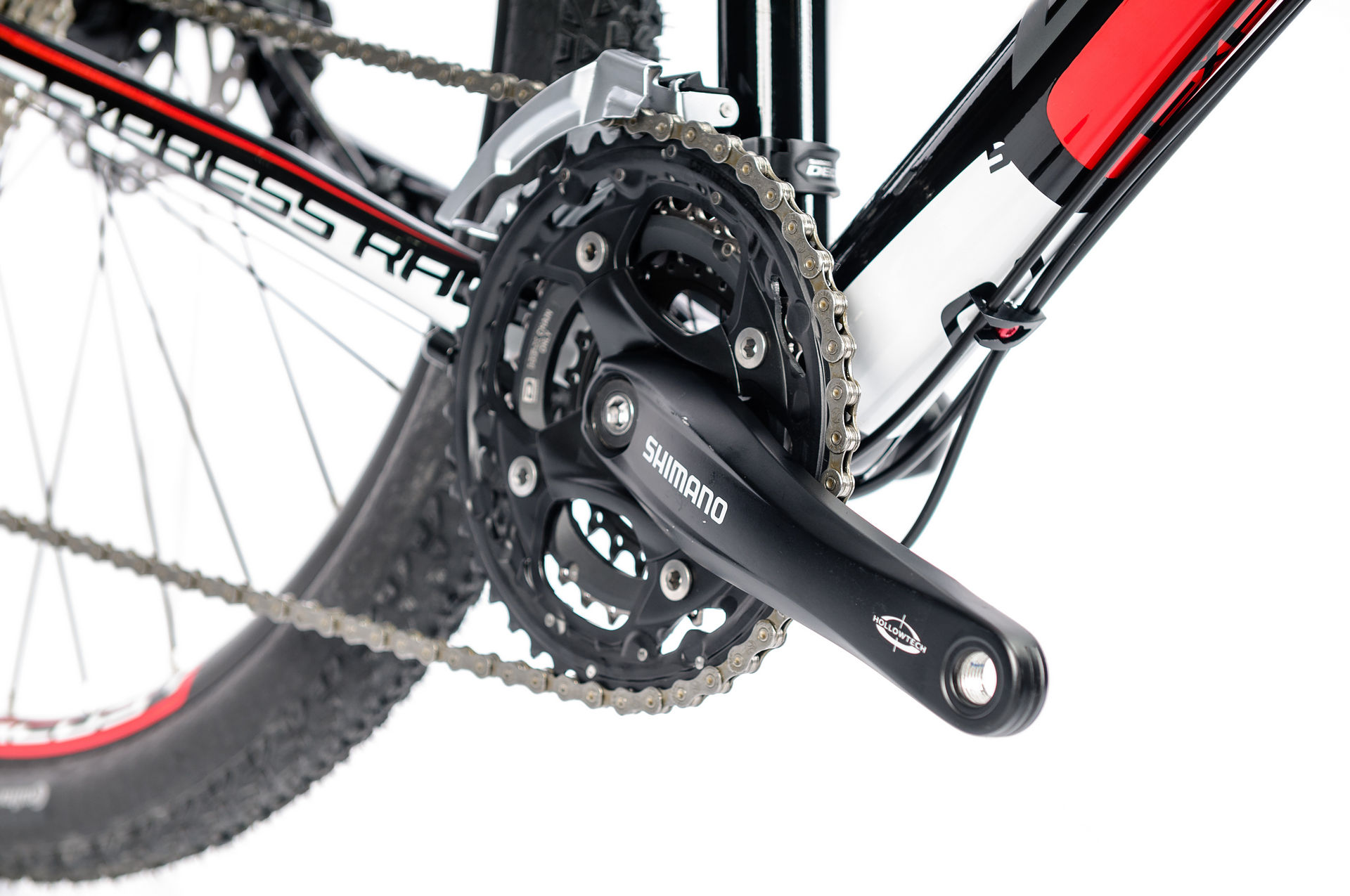

CHAINWHEEL |
Shimano Deore FC-M522-L 42/32/24X175L |
|
PEDALS |
UP-112S 9/16" SIL / BLK Cage |
|
CHAIN |
Yaban S10 |
|

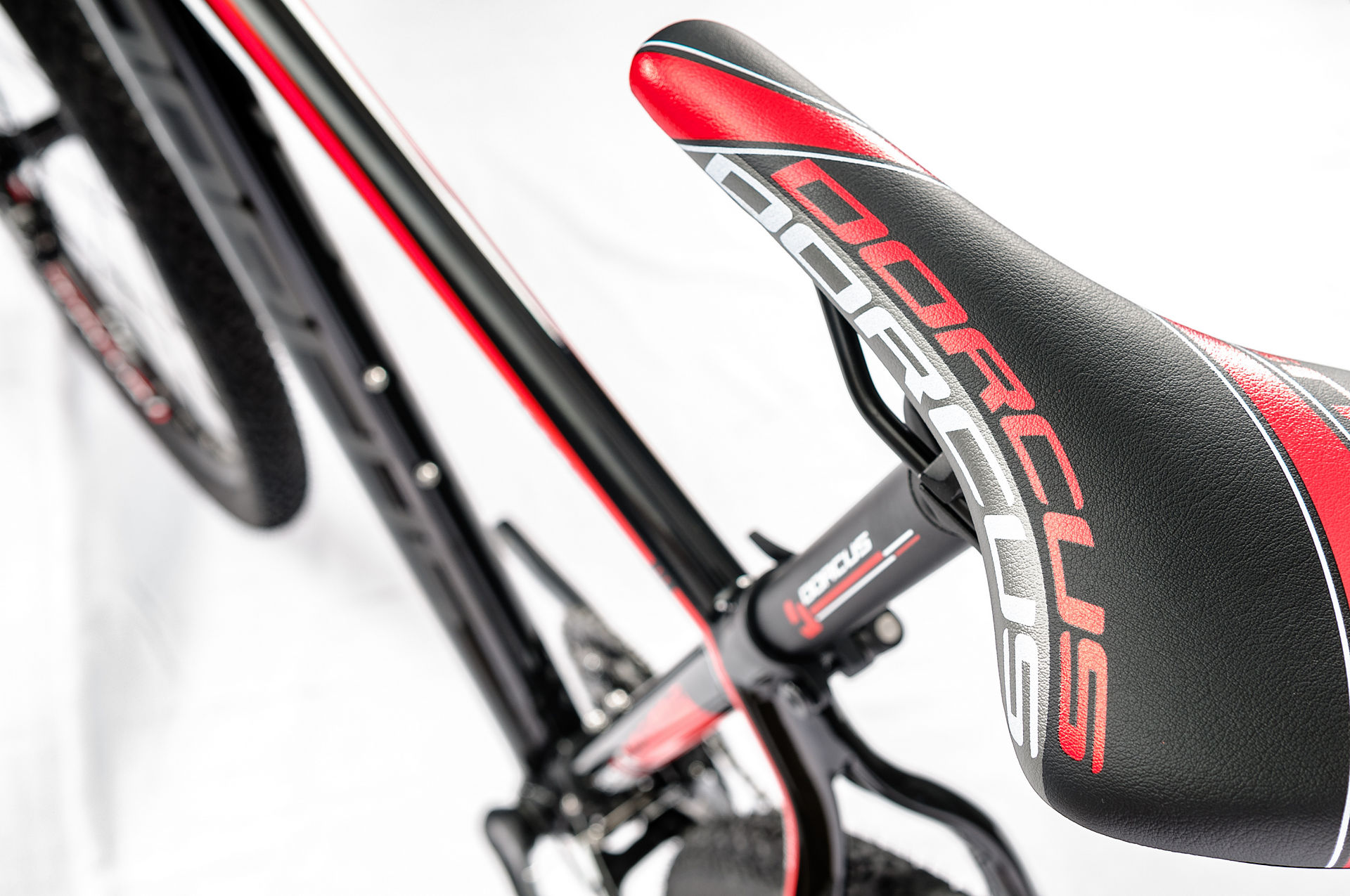

SADDLE |
Dorcus-21210 Black / Red |
|
SEATPOST |
Dorcus 31.6x350mm SBBK, Dorcus Red Sticker |
|

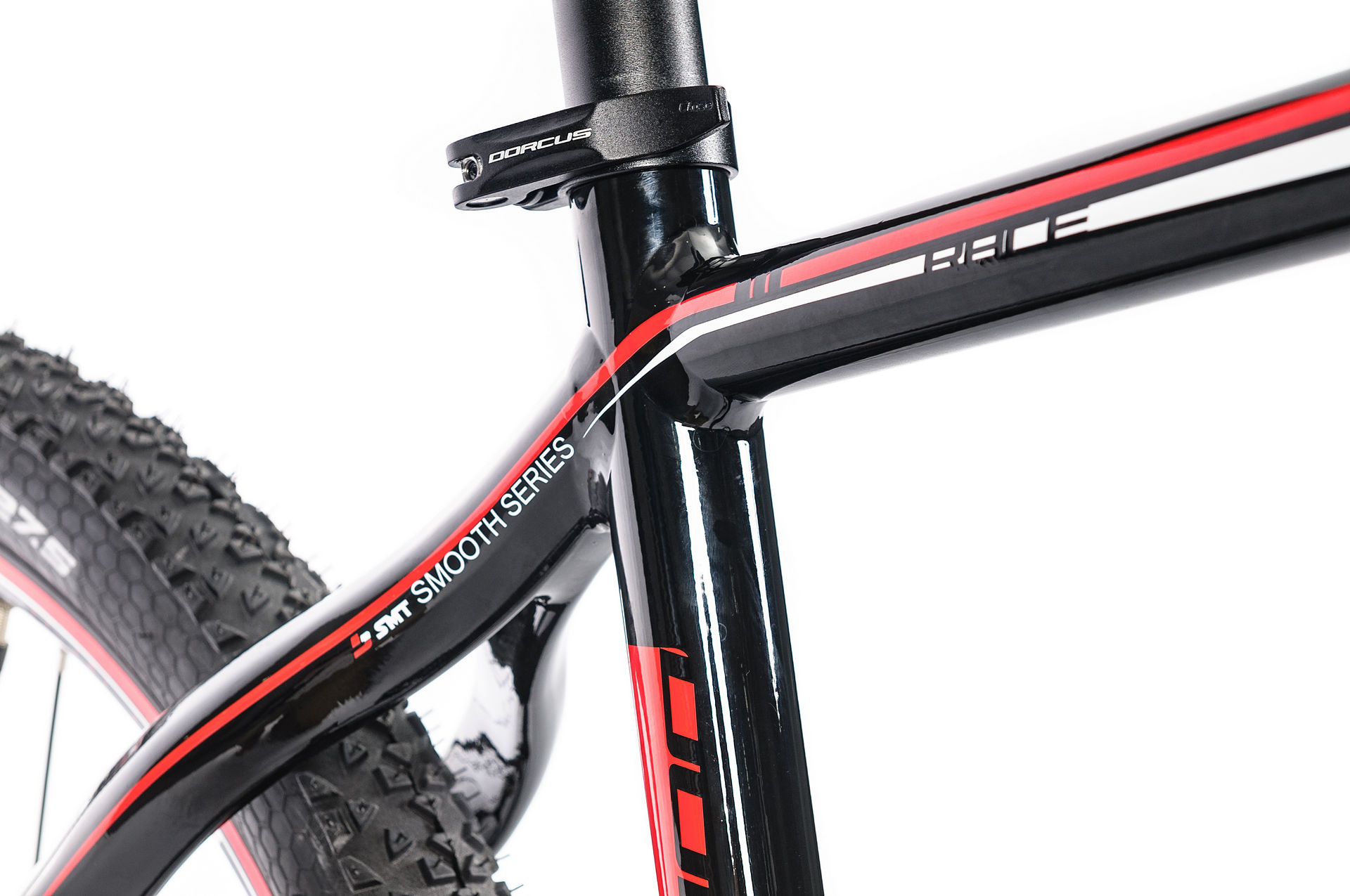

SEAT CLAMP |
Dorcus 34.9mm, Anod. BLK, Dorcus Laser |
|
FRONT HUB |
Dorcus 14Gx32H Anod. BLK, Dorcus Laser |
|
REAR HUB |
Dorcus 10/S 14Gx32H Anod. BLK, Dorcus Laser |
|
FRONT DERAILLEUR |
Shimano Deore FD-M610 34.9mm |
|

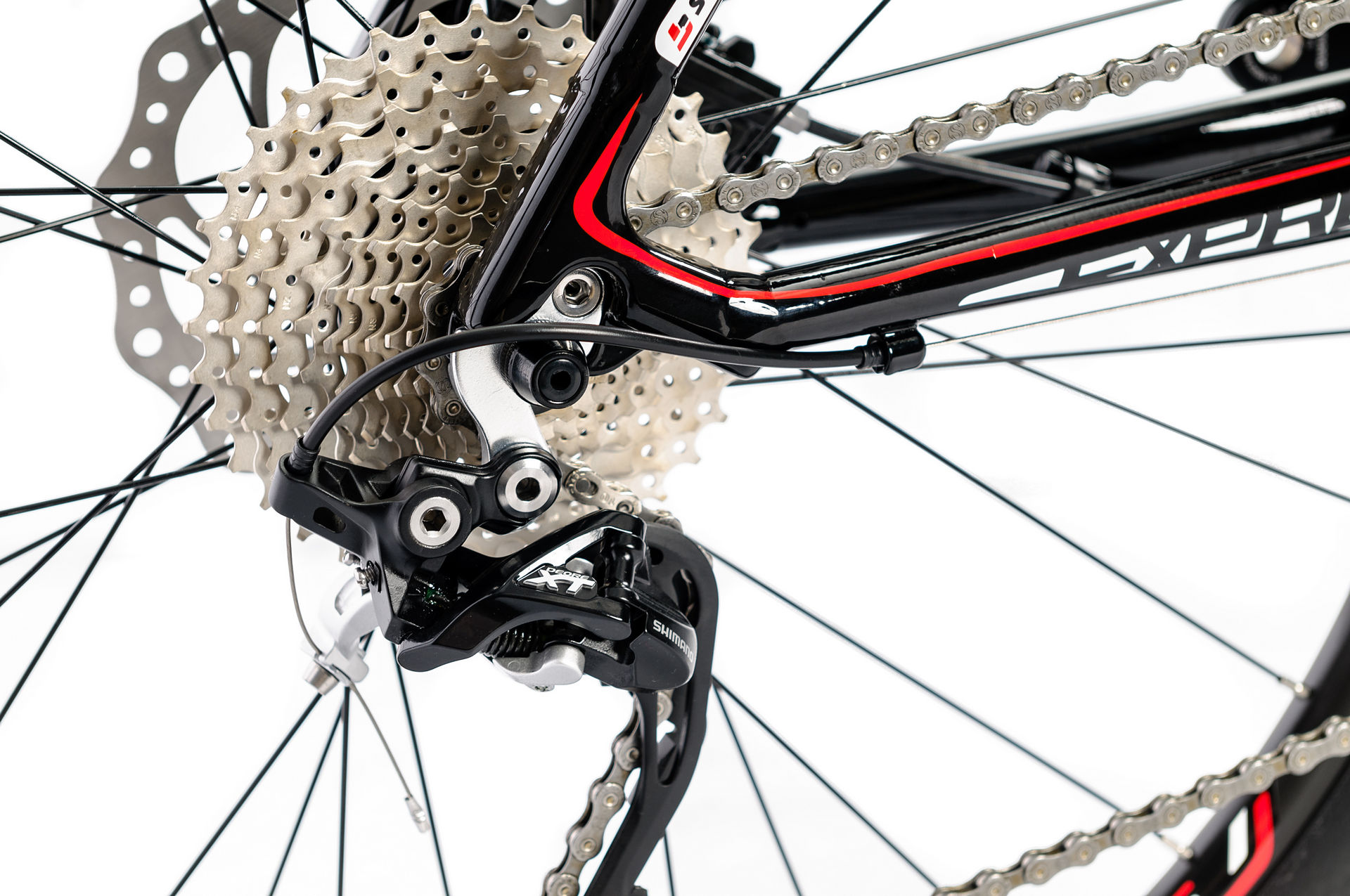

REAR DERAILLEUR |
Shimano XT RD-M781 SGS 10/S |
|

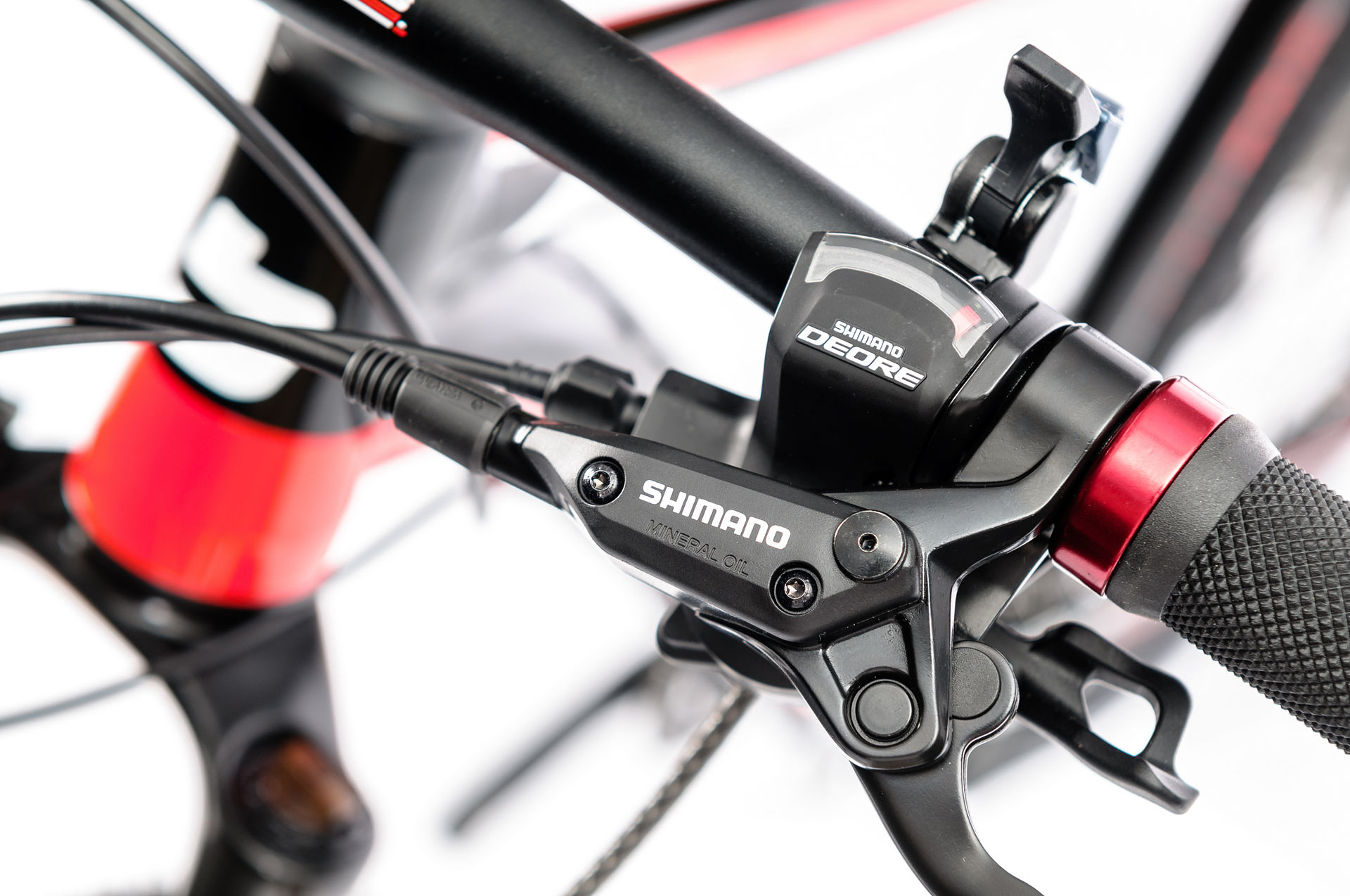

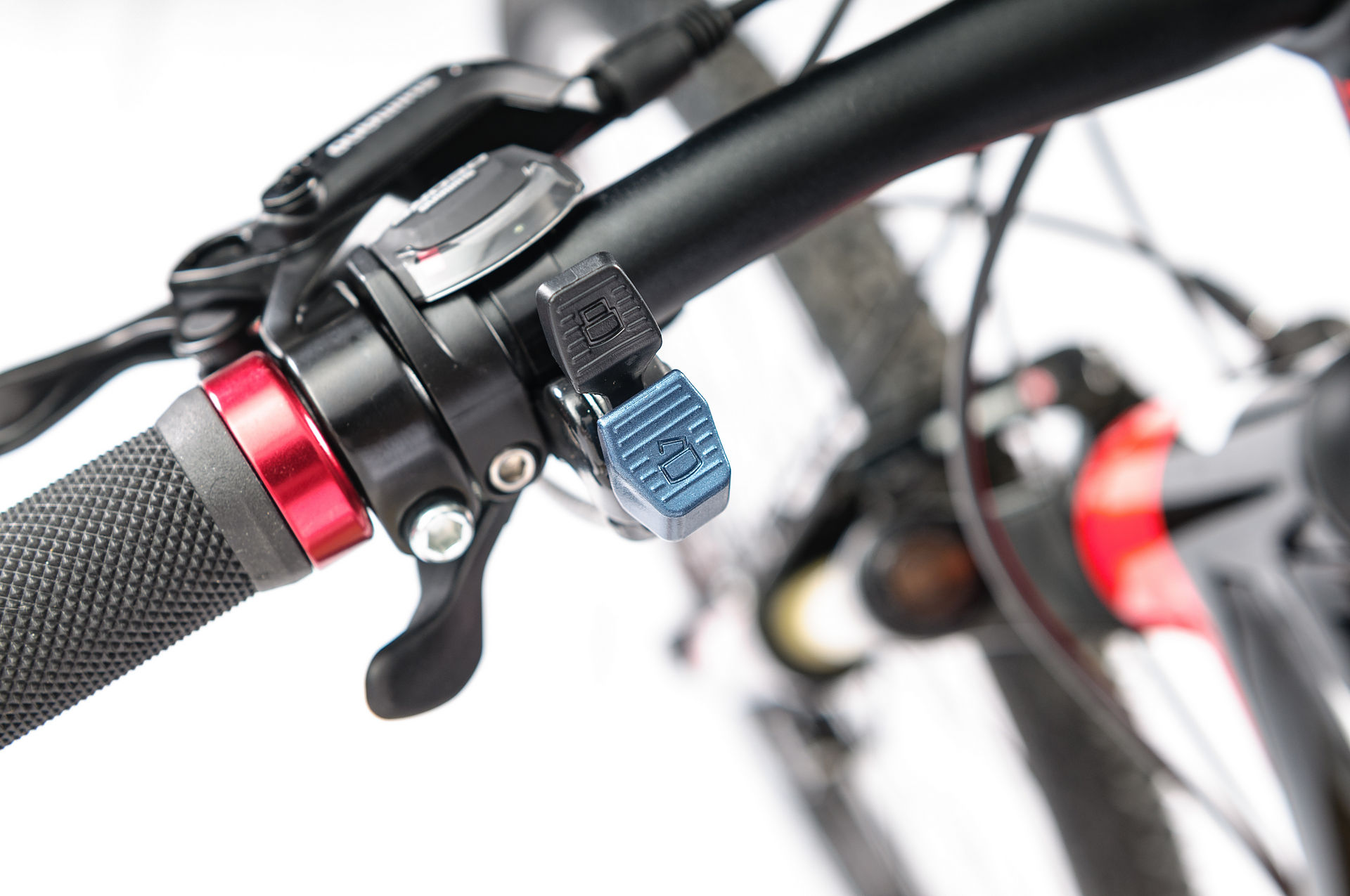

SHIFTERS |
Shimano Deore SL-M610 3x10/S |
|
CASSETTE |
CSMSOTAWOMSO 10/S 11-36T |
|

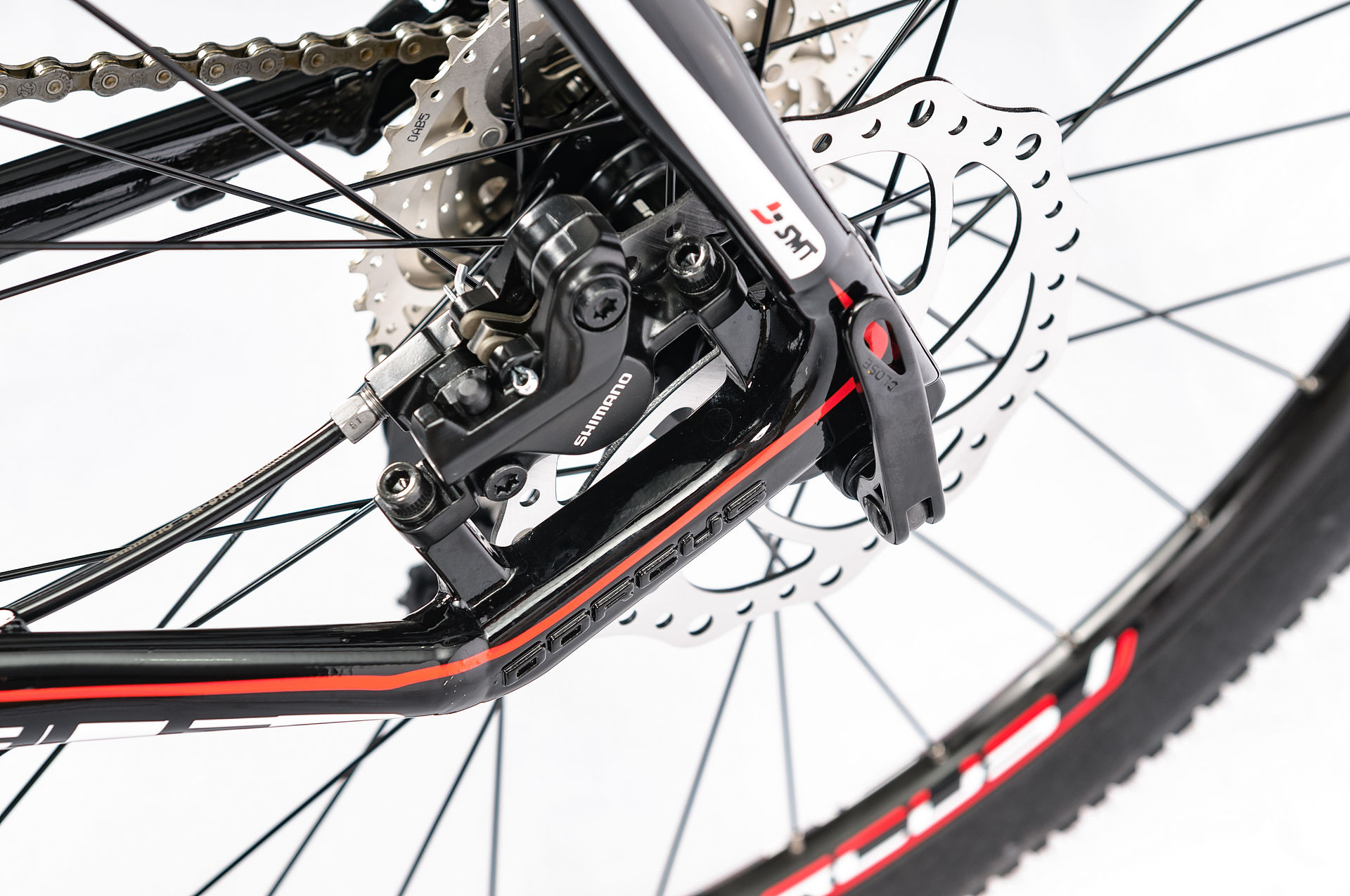

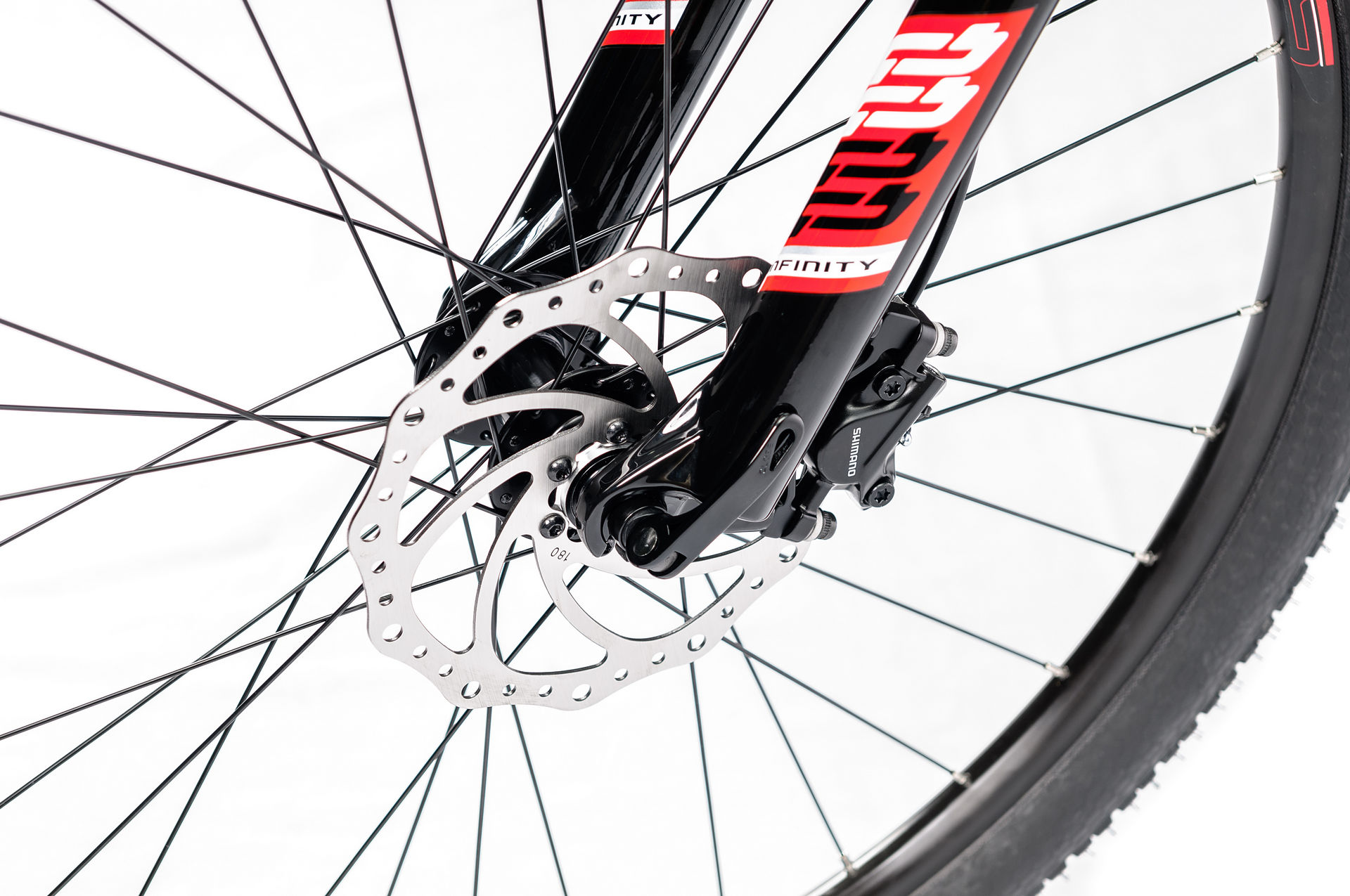

BRAKE SYSTEM |
Shimano Hydraulic Disc Brake, BL-M396 / BR-M395 |
|
RIM |
Dorcus 650B 14Gx32H BLK, Dorcus Red Sticker |
|
TIRES |
Continental Race King 27.5x2.0 |
